How to Use a Multimeter: Complete Beginner’s Guide

Meta Description: Learn how to use a multimeter step by step. This complete guide covers voltage, resistance, continuity, and more — with photos and diagrams. URL Slug: /how-to-use-a-multimeter/ Target Word Count: 4,000–4,500 words | 11 Sections

Staring at a multimeter for the first time can feel overwhelming — but it doesn’t have to be. Learning how to use a multimeter is one of the most practical skills any beginner can pick up, whether you’re a homeowner, a student, a DIYer, or a car enthusiast.

A multimeter is a simple handheld tool that tells you what’s happening inside a circuit. In minutes, you can test a dead battery, find a broken wire, or check a wall outlet — all with one device.

In this complete beginner’s guide, you’ll learn:

• What a multimeter is and what it measures
• Every part of the tool — in plain language
• How to measure voltage, resistance, current, and continuity
• How to test your car battery
• Safety rules that protect you every time

You don’t need an electrical background to follow this guide. Every step is explained simply and clearly.

If you’re also shopping for one, check out our guide to the best multimeter for beginners before you start.

What Is a Multimeter?

A multimeter is a handheld electronic measuring tool that combines three essential tests in one device: voltage, current, and resistance. Most modern digital multimeters also measure continuity, diodes, capacitance, and temperature.

The name says it all — “multi” (many) + “meter” (measurement tool). Instead of carrying three separate devices, you carry one.

Electricians, mechanics, engineers, and students rely on multimeters every day. But they are just as useful for everyday homeowners who want to test a battery, check a fuse, or troubleshoot a lamp that stopped working.

Internal link: Learn more in our dedicated article → What Is a Multimeter?

Digital vs Analog Multimeter — Which Should You Use?

For beginners, a digital multimeter is almost always the right choice. The display is clear, readings are precise, and most modern models include auto-range — which means the meter picks the right setting for you automatically.

What Does a Multimeter Measure?

A standard digital multimeter measures:

• Voltage (V) — the electrical pressure in a circuit
• Current (A) — the flow of electricity through a circuit
• Resistance (Ω) — how much a component resists electrical flow
• Continuity — whether electricity can travel from one point to another

Many models also test diodes, capacitors, transistors, and temperature.

Parts of a Multimeter Explained

Before you take any measurement, you need to understand what each part of your multimeter does. Using the wrong port or turning the dial to the wrong setting are the two most common beginner mistakes — this section prevents both.

📸 [Insert labeled diagram of multimeter here — label: Display, Dial, COM port, VΩmA port, 10A port, Probe tips]

Internal link: See our full visual guide → How to Read a Multimeter

The Display — How to Read the Numbers

The display shows your measurement as a number. Most digital multimeters show 3 to 4 digits. For example, measuring a 9V battery might show 9.12 on screen.

Some displays include a bar graph below the number — this gives you a quick visual sense of whether the reading is high or low. It is especially useful when readings are changing quickly.

If you see OL or 1 on the display, it means your selected range is too low. Switch to a higher range and try again.

The Dial (Rotary Switch) — Choosing the Right Setting

The large dial in the centre of the multimeter selects the type of measurement you want to take. You turn it to choose voltage, resistance, current, continuity, and other modes.

Each position on the dial is marked with a symbol. See Section 4 for a full guide to every symbol.

The Ports — COM, VΩmA, and 10A Explained

Most multimeters have three ports (also called terminals or jacks):

⚠️ Never plug the red probe into the 10A port for voltage or resistance measurements. This is one of the most common ways beginners damage their multimeter.

Internal link: See our full visual guide → Multimeter Symbols Guide

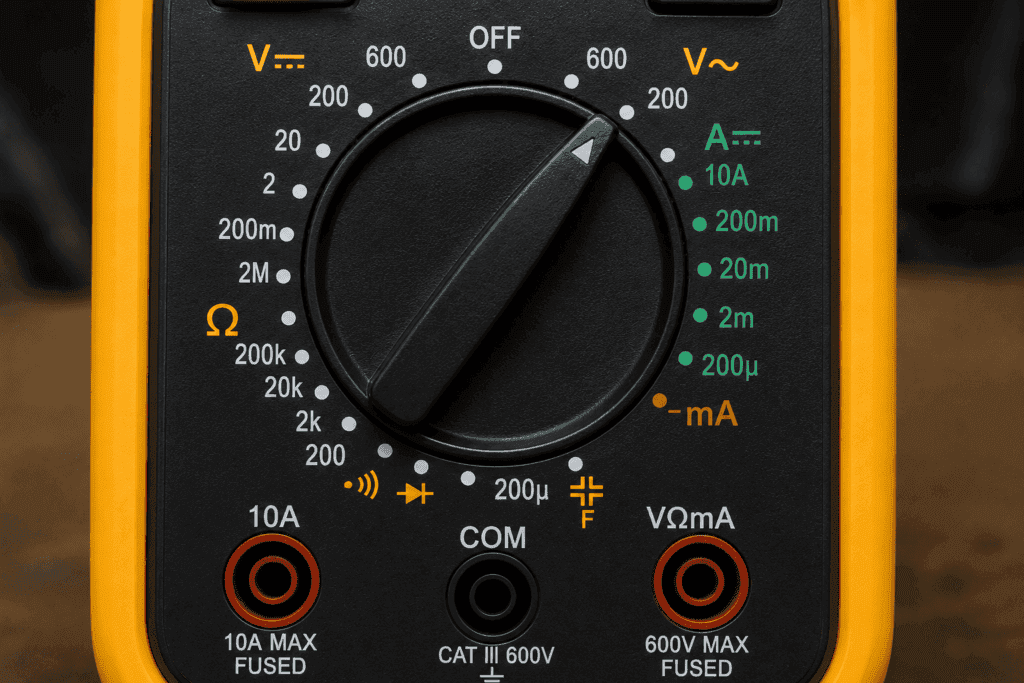

Multimeter Symbols and Settings — Complete Guide

The symbols on a multimeter dial can look confusing the first time. But once you learn what each one means, choosing the right setting becomes second nature.

Here is a complete guide to the most important symbols you will find on any digital multimeter:

Internal link: For a deeper breakdown of every symbol → Multimeter Symbols Guide

AC Voltage Symbol (V~)

The tilde (~) stands for alternating current. Use this setting to measure wall outlets, extension cords, and any mains-powered device. In Pakistan, standard AC voltage is 220–240V.

DC Voltage Symbol (V—)

The straight lines (—) stand for direct current. Use this for all battery tests, car electrical checks, and low-voltage electronics. Most DIY projects use DC voltage.

Resistance Symbol (Ω)

The Omega symbol (Ω) is the Greek letter for “ohm” — the unit of resistance. Use this setting to test resistors, cables, and components. Always turn off the circuit before measuring resistance.

Continuity Symbol (Sound Wave / Diode Arrow)

This symbol looks like a sound wave or a diode arrow. When you select this mode and touch the probes to a complete circuit, the multimeter beeps. Silence means the circuit is broken.

Capacitance Symbol

Looks like two parallel lines with a curved bracket. Used to test capacitors. This feature appears on mid-range and professional multimeters, not always on budget models.

💡 Tip: A table like the one above is a strong featured snippet target for “multimeter symbols.” Google often pulls this type of content directly into search results.

How to Measure Voltage with a Multimeter (AC & DC)

Voltage measurement is the most common use of a multimeter. You can check a battery to see if it is still good, test a wall outlet to confirm it is live, or measure the voltage in a car circuit.

Step 1 — Set the Dial to Voltage Mode

Turn the dial to the correct voltage type:

• DC Voltage (V—): Use for batteries, car circuits, and electronics
• AC Voltage (V~): Use for wall outlets and mains-powered appliances

Choosing the right range: If your multimeter does not have auto-range, choose a range higher than the voltage you expect. For a 9V battery, select 20V DC. For a wall outlet, select 750V AC or 600V AC.

Step 2 — Insert the Probes Correctly

• Black probe → COM port
• Red probe → VΩmA port

Never use the 10A port for voltage measurements.

Step 3 — Touch the Probes to the Circuit

For DC voltage (e.g. a battery): Touch the red probe to the positive (+) terminal and the black probe to the negative (−) terminal.

For AC voltage (e.g. a wall outlet): Insert the probes into the outlet slots. Polarity does not matter for AC measurements.

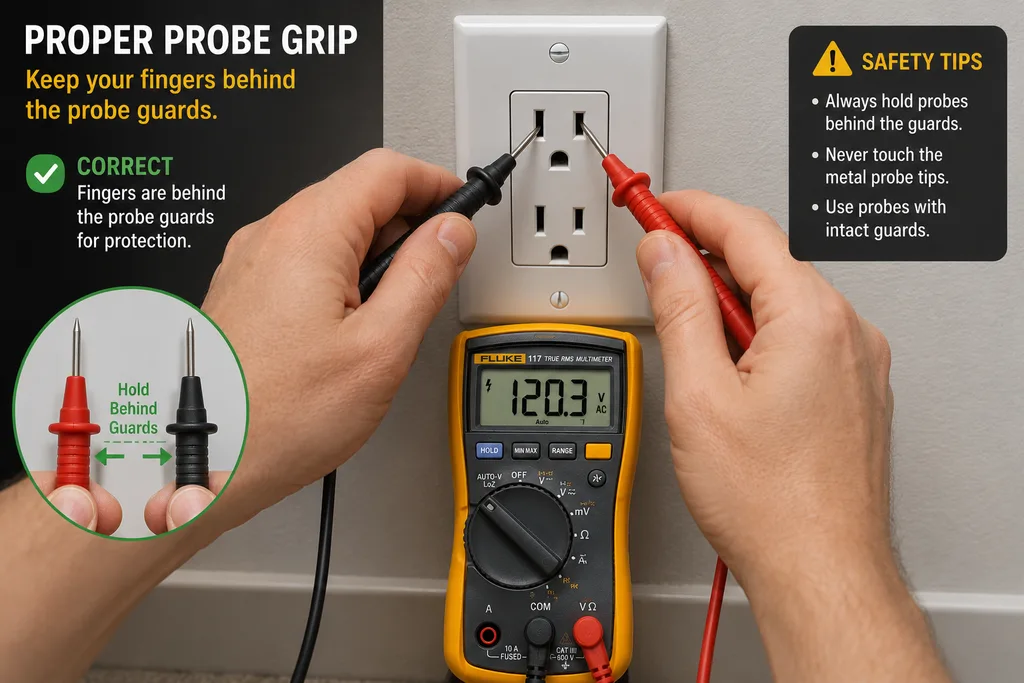

⚠️ Safety warning: Keep your fingers behind the probe guards at all times when testing live AC voltage. Never touch the metal probe tips.

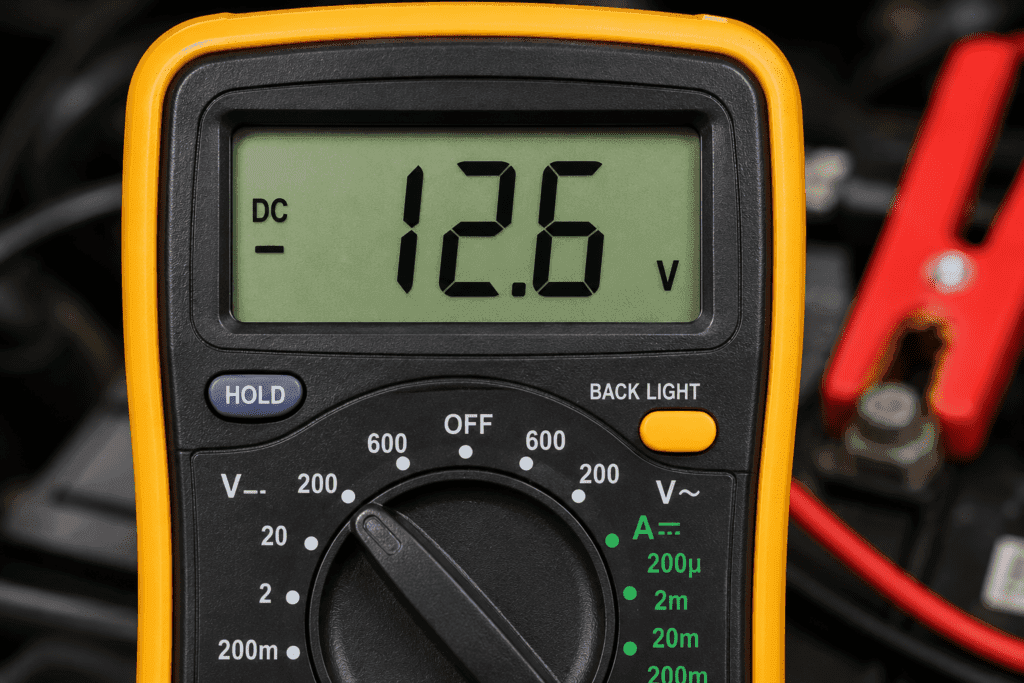

Step 4 — Read the Display

The number on the display is your voltage reading. If you see a negative sign (−), you have connected the probes in reverse — swap them and try again. This only affects the sign, not the accuracy of the reading.

What Voltage Reading Is Normal?

Internal links: → How to Check Voltage with a Multimeter → How to Measure DC Voltage with a Multimeter

How to Measure Resistance (Ohms) with a Multimeter

Resistance measurement tells you how much a component opposes the flow of electricity. Use this setting to test resistors, cables, heating elements, and motor windings.

Step 1 — Turn Off Power to the Circuit

This is the most important step. Never measure resistance on a live circuit. The voltage from the circuit will interfere with the reading and may damage your multimeter.

Disconnect the component from the circuit completely if possible. Remove the battery. Switch off the power supply.

Step 2 — Set the Dial to Ohms (Ω)

Turn the dial to the Ω symbol. If your multimeter is not auto-ranging, choose a range. Start with the lowest range that is higher than the resistance you expect. For a 100Ω resistor, select 200Ω.

Step 3 — Place Probes and Read the Result

Touch one probe to each end of the component. The display shows the resistance in ohms. Polarity does not matter for resistance measurements.

What a normal reading looks like: If you are testing a 220Ω resistor, the display should show a value close to 220 — for example, 217 or 223. Small variations are normal.

What Does OL Mean on Resistance Setting?

OL (overload) or the number 1 displayed alone means the component’s resistance is higher than the selected range can measure. This can mean:

1. You selected a range that is too low — switch to a higher range
2. The component has an open circuit — it is broken or disconnected internally
3. The component genuinely has very high resistance (e.g. a megaohm-rated resistor)

Internal links: → How to Measure Resistance with a Multimeter → What Does OL Mean on a Multimeter?

How to Measure Current (Amps) with a Multimeter

Measuring current is the trickiest multimeter skill for beginners. Unlike voltage and resistance — where you simply touch the probes across a component — current requires you to route electricity through the meter itself.

⚠️ Important: Which Port to Use for Amps

Before you do anything else, check your port selection. Using the wrong port for current measurement is the most common way beginners blow the fuse in their multimeter.

• For currents up to 200mA → use the mA port (if your meter has one)
• For currents up to 10A → use the 10A port
• Never measure high current through the VΩmA port

Step 1 — Move the Red Probe to the 10A Port

Unplug the red probe from VΩmA. Plug it firmly into the 10A port. Leave the black probe in COM.

Step 2 — Set the Dial to Amps (A)

Turn the dial to DC Amps (A—) for battery-powered circuits, or AC Amps (A~) for mains-powered circuits.

Step 3 — Break the Circuit and Measure in Series

This is the key difference from voltage measurement. Current must flow through the multimeter, not across it.

1. Turn off the circuit
2. Disconnect one wire to create a gap
3. Connect the multimeter across the gap — red probe to the wire going toward the positive supply, black probe to the load
4. Turn the circuit back on
5. Read the current on the display

Internal link: → How to Measure Current with a Multimeter

💡 Tip: For measuring car battery draw or household appliance current without breaking the circuit, consider a clamp meter — it measures current around a wire without any disconnection.

How to Check Continuity with a Multimeter

Continuity testing is the fastest, most satisfying test a multimeter can perform — and it is one of the most useful for beginners. You hear a beep when a circuit is complete. Silence tells you something is broken.

What Is Continuity and Why Does It Matter?

Continuity means there is an unbroken electrical path between two points. If a wire is continuous, current can travel through it. If it is not continuous, something is broken, burned, or disconnected.

Use continuity mode to:

• Test if a fuse is blown
• Find a break in a wire
• Check if a switch opens and closes properly
• Verify connections on a circuit board

Step 1 — Set Dial to Continuity Symbol

Turn the dial to the continuity symbol — it looks like a sound wave (⟨⟩) or a diode arrow (→|). On many multimeters, continuity and diode testing share the same position.

Step 2 — Touch Probes Together (Self-Test)

Before testing anything, touch the red and black probe tips together. Your multimeter should beep immediately. This confirms the beeper is working and the setting is correct.

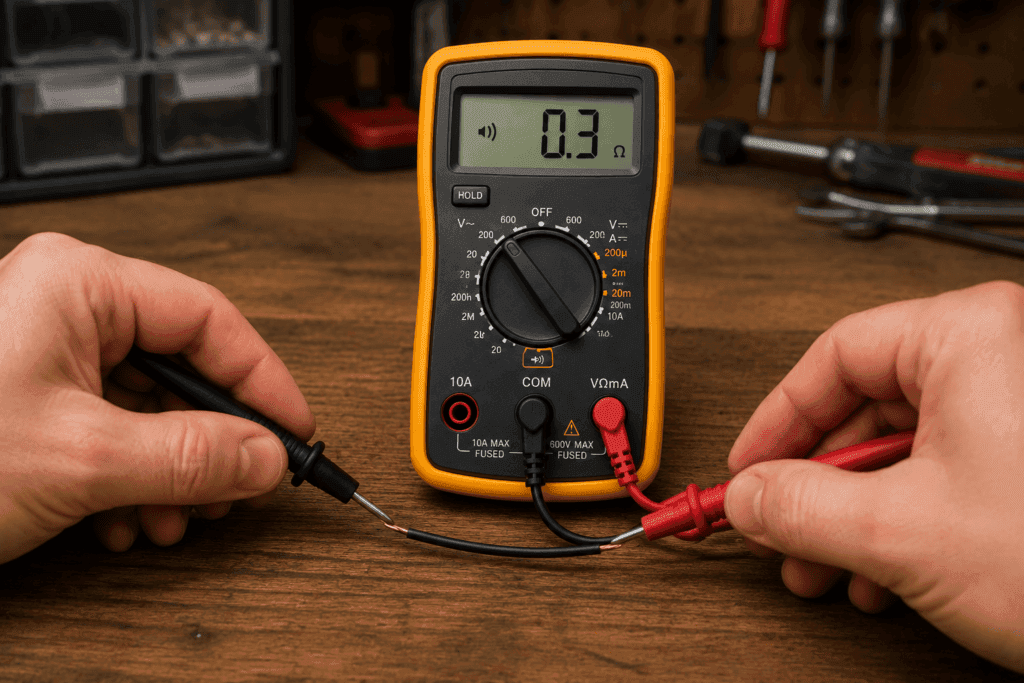

Step 3 — Test Your Circuit or Wire

Touch one probe to each end of the wire, fuse, or component you want to test.

Beep = Good Connection. No Beep = Broken Circuit.

Internal link: → How to Check Continuity with a Multimeter (Full Guide)

How to Test a Car Battery with a Multimeter

Testing a car battery is one of the most popular real-world uses for a multimeter. It takes less than two minutes and can save you from a dead car on a cold morning.

This section gives you the essentials. For a full step-by-step walkthrough with load testing and alternator checks, see our dedicated guide → How to Test a Car Battery with a Multimeter.

What Voltage Should a Healthy Car Battery Show?

A fully charged 12V car battery at rest (engine off) should read:

Step-by-Step Battery Test

1. Turn off the car and all electronics. Wait 15 minutes for the surface charge to settle.
2. Set your multimeter to DC Voltage (V—) on the 20V range (or use auto-range).
3. Touch the red probe to the positive (+) terminal and black probe to the negative (−) terminal.
4. Read the display.

What If the Reading Is Below 12.4V?

Try charging the battery fully, then test again. If it still reads below 12.4V after a full charge, the battery may be degraded and due for replacement.

Internal links: → How to Test a Car Battery with a Multimeter → Best Automotive Multimeter

Frequently Asked Questions About Using a Multimeter

What is the continuity symbol on a multimeter?

The continuity symbol looks like a small sound wave (similar to Wi-Fi bars) or a diode arrow pointing to a line (→|). On many multimeters, it shares a dial position with the diode test. When you select it and touch the probes together, the meter beeps to confirm it is working. See our full continuity guide for more detail.

What does OL mean on a multimeter?

OL stands for “overload” and means the value being measured is higher than the selected range can display. It is not an error — it simply means you need to switch to a higher range. On some meters, OL appears as the number 1 alone on the far left of the display. See our dedicated article → What Does OL Mean on a Multimeter?

Can I use a multimeter to test a live wire?

You can test voltage on a live wire safely — that is what the voltage setting is designed for. However, you must never test resistance or continuity on a live circuit. The voltage present will give you a false reading and may damage the meter. Always turn off and isolate the circuit before testing resistance.

Which port do I use for measuring amps?

For currents below 200mA, use the mA port if your multimeter has one. For currents up to 10A, move the red probe to the 10A port. Never measure amps through the standard VΩmA port — this can blow the internal fuse instantly.

How do I know which setting to choose on my multimeter?

First, identify what you are measuring: voltage, resistance, or current. Then, choose DC or AC depending on your circuit. Finally, select a range higher than the value you expect. If you are unsure, start at the highest range and work down. If your meter has auto-range, it does all of this for you. See the Multimeter Symbols Guide for a complete dial reference.

Is it safe to use a multimeter on a car battery?

Yes, it is one of the safest measurements you can make. Car batteries output 12V DC — well within the safe handling range of any multimeter. Just use the correct setting (DC Voltage, 20V range) and connect the probes correctly. There is no risk of shock from a standard 12V automotive battery.
